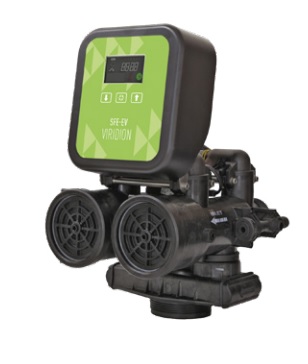

SFE-EV Viridion is the latest Pentair eco-friendly innovation featuring smart regeneration, providing users with average water savings of 22%, possibly reaching 40% for some specific applications. This is made feasible thanks to the drain conductivity sensor, the variable brining function and the adaptive reserve capacity, which all combined permit to reach significant benefits and savings. Besides offering high customization possibilities, this controller can manage SIATA valves V132, V230, V250 and V360 in softening versions
Can be used on SIATA valves V132, V230, V250 and V360 for softening applications
• Improved settings setup versus former SFE-EV
• Smart regeneration capability when using drain water sensor as an option
- Regeneration cycles length adaptation
- Significant water savings with an average of 22%
• Variable brining management with embedded brine valve, allowing salt savings
• Fixed or variable reserve calculation
• Automatic volume calculation with more than 4 digits setting
• Colored LCD display featuring:
- High customization possibilities: customer logo, service phone number and password
- Time of day alternating with volume remaining during the service
- Salt status indicator and alarm
- Indication of day of the week and time of the day in hours and minutes
- Regeneration steps and cycle time remaining
• Easy and simple, user-friendly programming:
- Different volume units set (liters, cubic meters or gallons)
- Quick and easy setup of capacity, regeneration time, day override and holiday function
- Advanced programming options including up to 4 regenerations phases with independently adjustable cycle times
• 2 free contact relays each one programmable in 8 different modalities (for solenoid valve, dosing pump, …)
• Easy to access external terminal to connect external devices such as meters, salt sensor, solenoid valves, chlorine cell…
• Manual regeneration, meter immediate or delayed, time clock, day of week regeneration
• Remote start, immediate or delayed, inhibit signal
• Statistic Modes
• Programming is stored in the EEPROM and will not be lost due to Power outages
• Interchangeable standard lithium battery (#CR2032)
• Electrical rating: 230 V / 50 or 60 Hz transformer 12 VAC (6 VAC if Chlorine cell)
• Operating temperature range: 2-43°C
